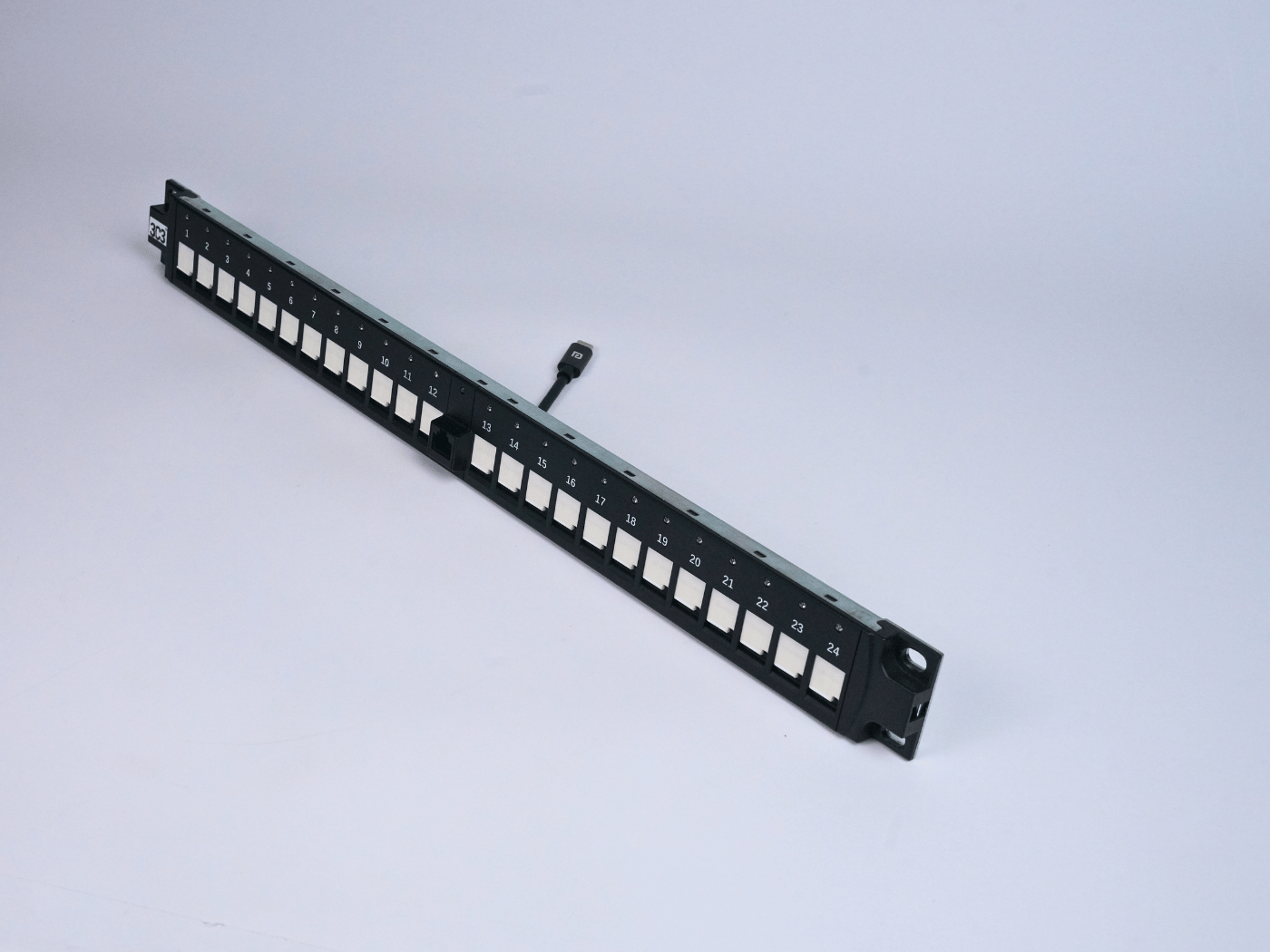

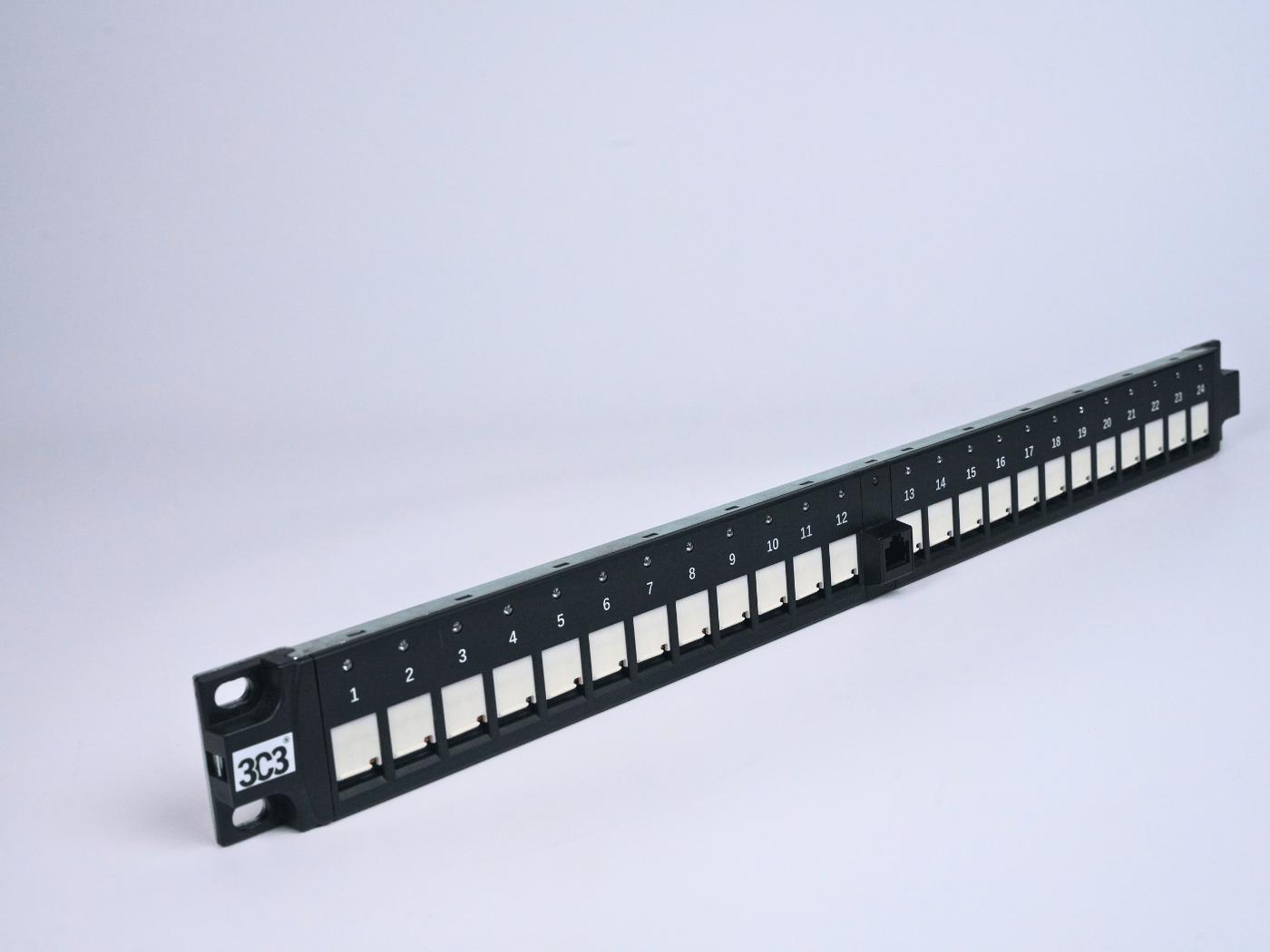

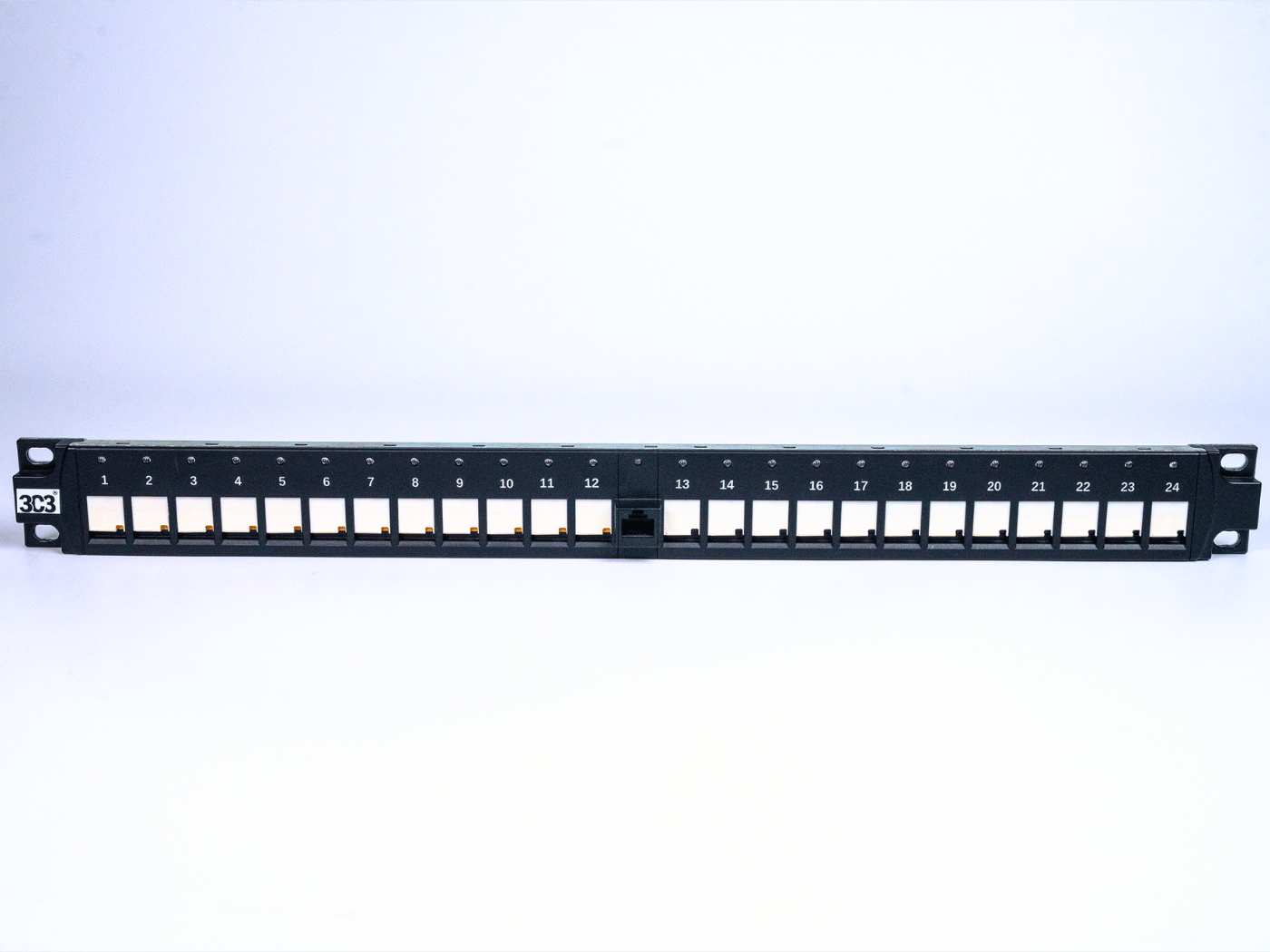

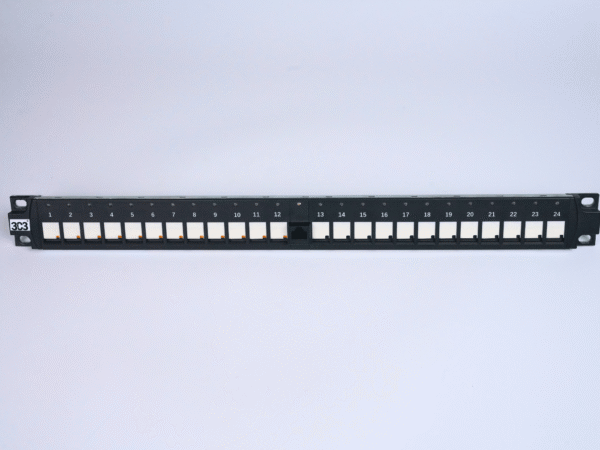

ICM Patch Panel, Unloaded, 24Port,1U

Part Code:

46080-1000

PIM™ Patch Panel, Unloaded, 24Port,1U.
Connector Type Keystone Footprint – UTP, STP & Fiber
Number of Ports 24
Panel Frame Carbon Steel with Nickel Plating
Download datasheet
Enquire about this product
  • 3C3® Performance Warranty
  • Make in India

3C3® 2 post Open racks are designed for high density datacenters and Networking center applications. The racks vertical frames are made up of aluminum profiles with the power coated and bolted.

  • Conforms to the DIN 41494 and ISO 9001-2015 Standards.
  • 6061-T6 aluminum extrusion construction gives the light weight and high strength.
  • U positions are graduated with ascending numbers (1U=44.45mm).
  • Horizontal Panel Mounting Holes are with M6 threads in both flanges.
  • M6 tapped holes are conductive as per the DIN 41494 standard.
  • Powder Coated provides uniform appearance and protection against aluminum Corrosion.
  • Weight capacity of 1200Kgs Static load.
  • Grounding provision is made.
Connector Type Keystone Footprint – UTP, STP & Fiber
Number of Ports 24
Panel Frame Carbon Steel with Nickel Plating
