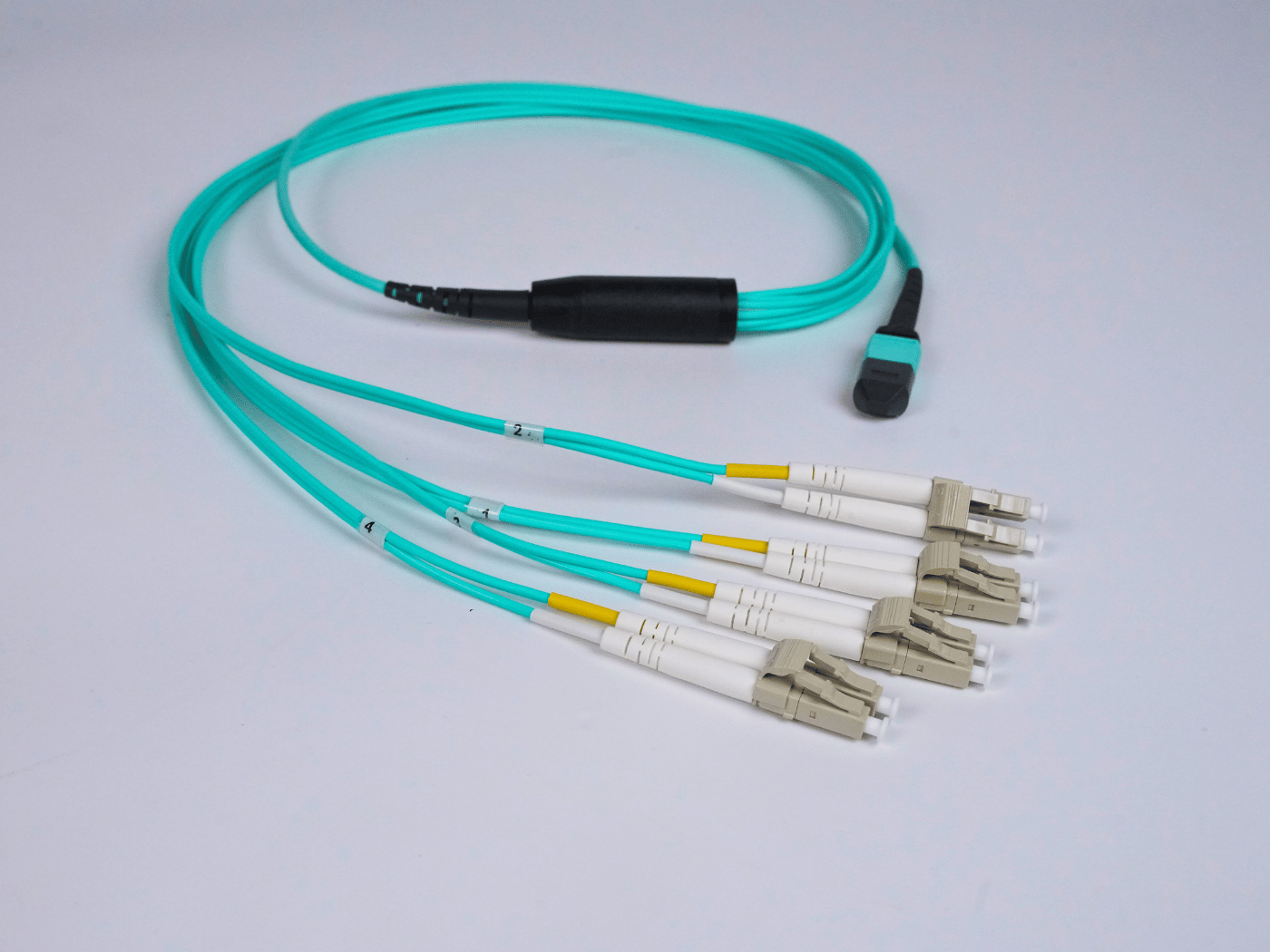

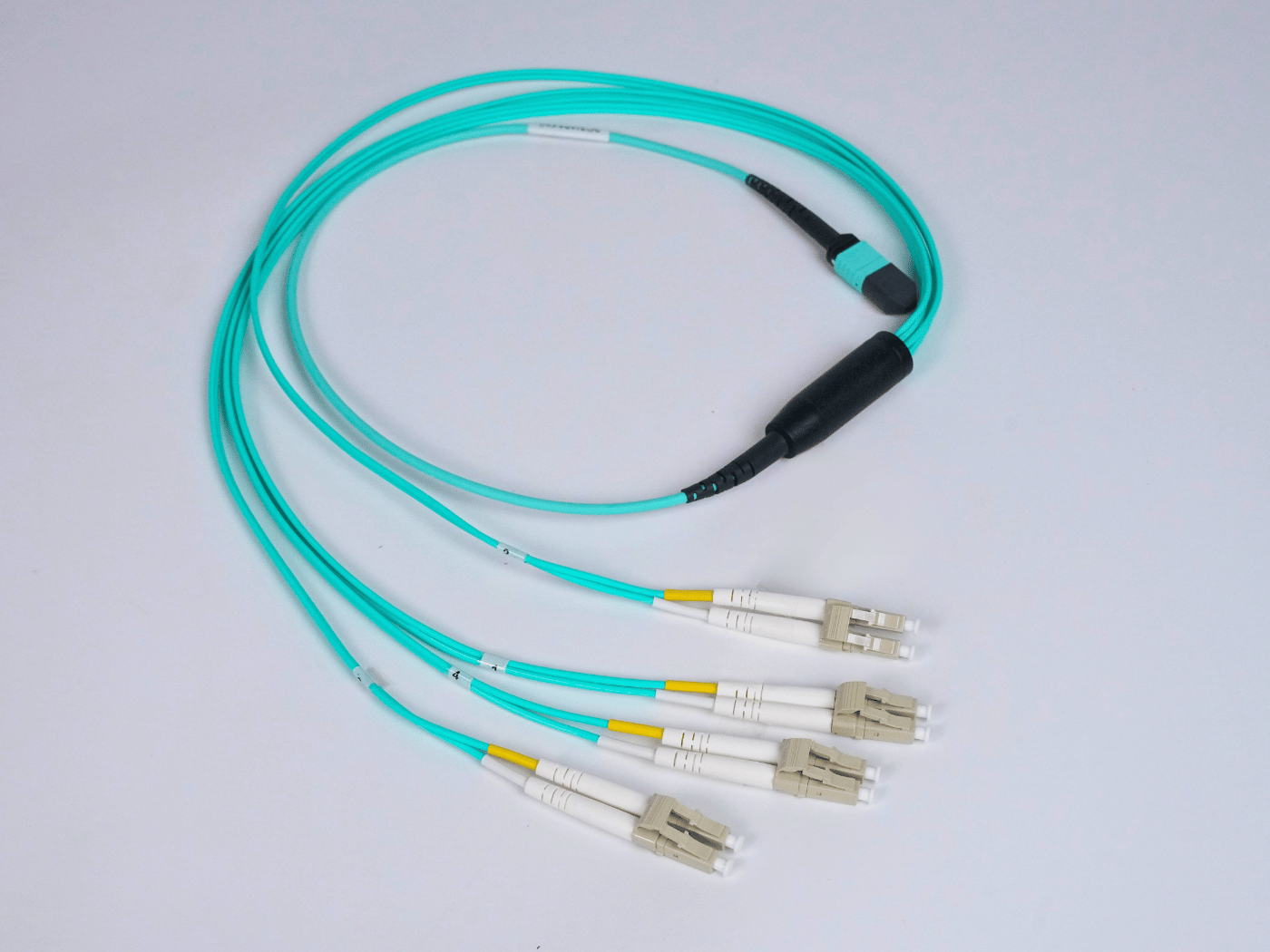

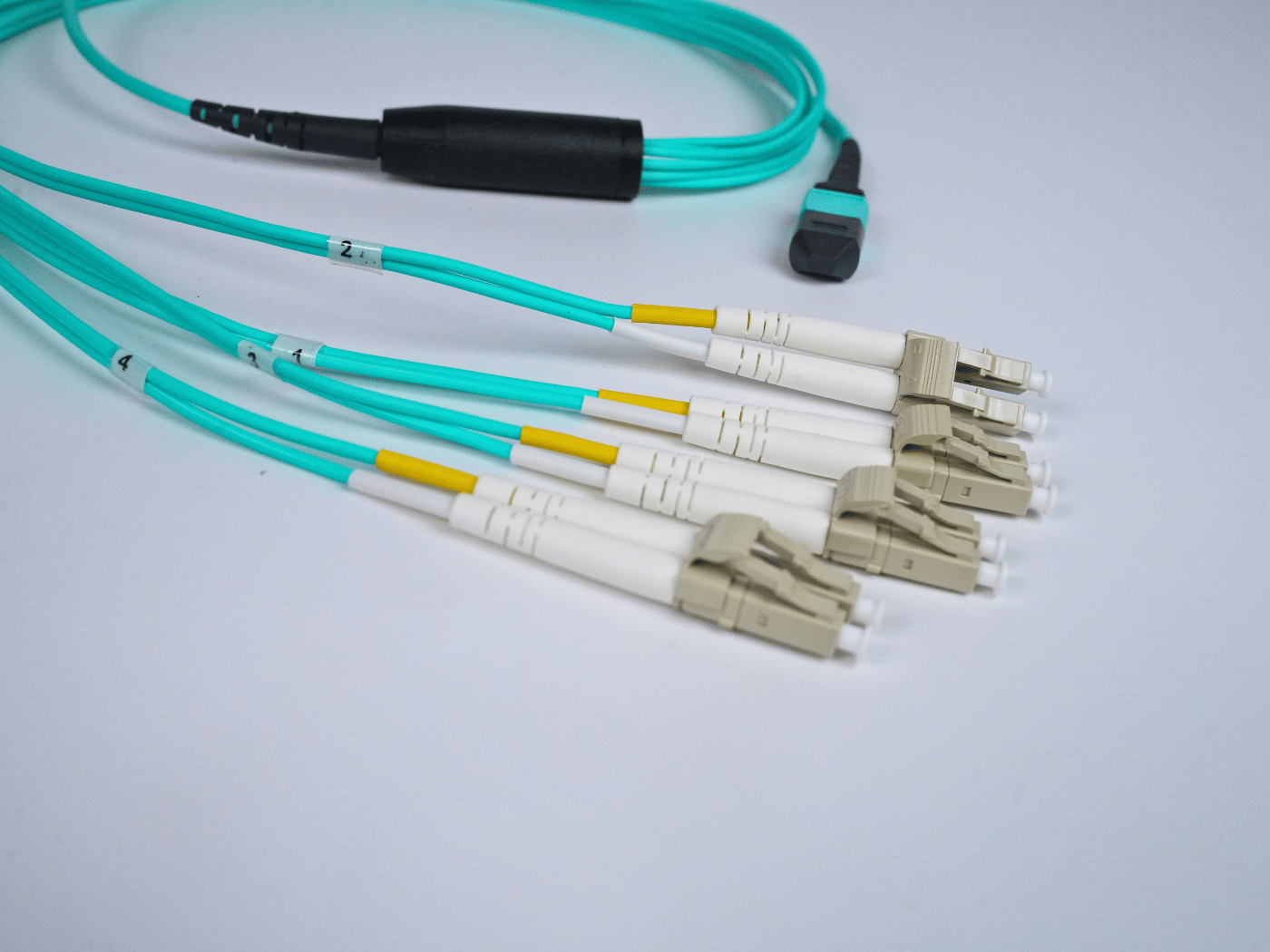

MPO to LC Patch Cord

Part Code:

67CDE-XXXX

MPO Duplex Breakout Patch Cord
MTP Cable Diameter 3 mm
Breakout Cable Diameter 2 mm
Durability ≥500 Times
Insert Pull Test 1000 Times <0.5 dB
Interchange <0.5 dB
Anti-Tensile Force 15 kgF
Operating Temperature -40°C to +85°C
Download datasheet
Enquire about this product
  • 3C3® Performance Warranty
  • Make in India

MPO to LC Breakout cabling system is ideally suited for high density environment that demands space saving cable density and innovative cable management solutions. MPO connectors have
multiple fiber connections within a conventional cable, this advantage allows data center designers to deploy ten or twenty times of fiber counts in same storage. Simply install the MPO
trunk cable within the building and connect to rear of a MPO Patch Panel or fan out.

  • Conformance to Telcordia GR-1435 Core, ANSI/TIA-568.3-D, ANSI/TIA 604-5, IEC 61754-7.
  • High precision guide pins for exact alignment.
  • Plug and Play.
  • High Density interconnect with 8F, 12F, 20F, 24F options.
  • Removable housing for quick change of pin clamps and easy ferrule cleaning/re-polishing.
  • Single-Mode and Multi-Mode color coded housings.
  • Alignment achieved with high precision guide pins.
  • Push/Pull mating for quick assembly.
  • Covered under 3C3® Performance Warranty.
MTP Cable Diameter 3 mm
Breakout Cable Diameter 2 mm
Durability ≥500 Times
Insert Pull Test 1000 Times <0.5 dB
Interchange <0.5 dB
Anti-Tensile Force 15 kgF
Operating Temperature -40°C to +85°C

Request a quote

Enquire about this product

Tell us your requirement for the

MPO to LC Patch Cord

Part Code: 67CDE-XXXX

and our team will get back with pricing, lead time and datasheets.
