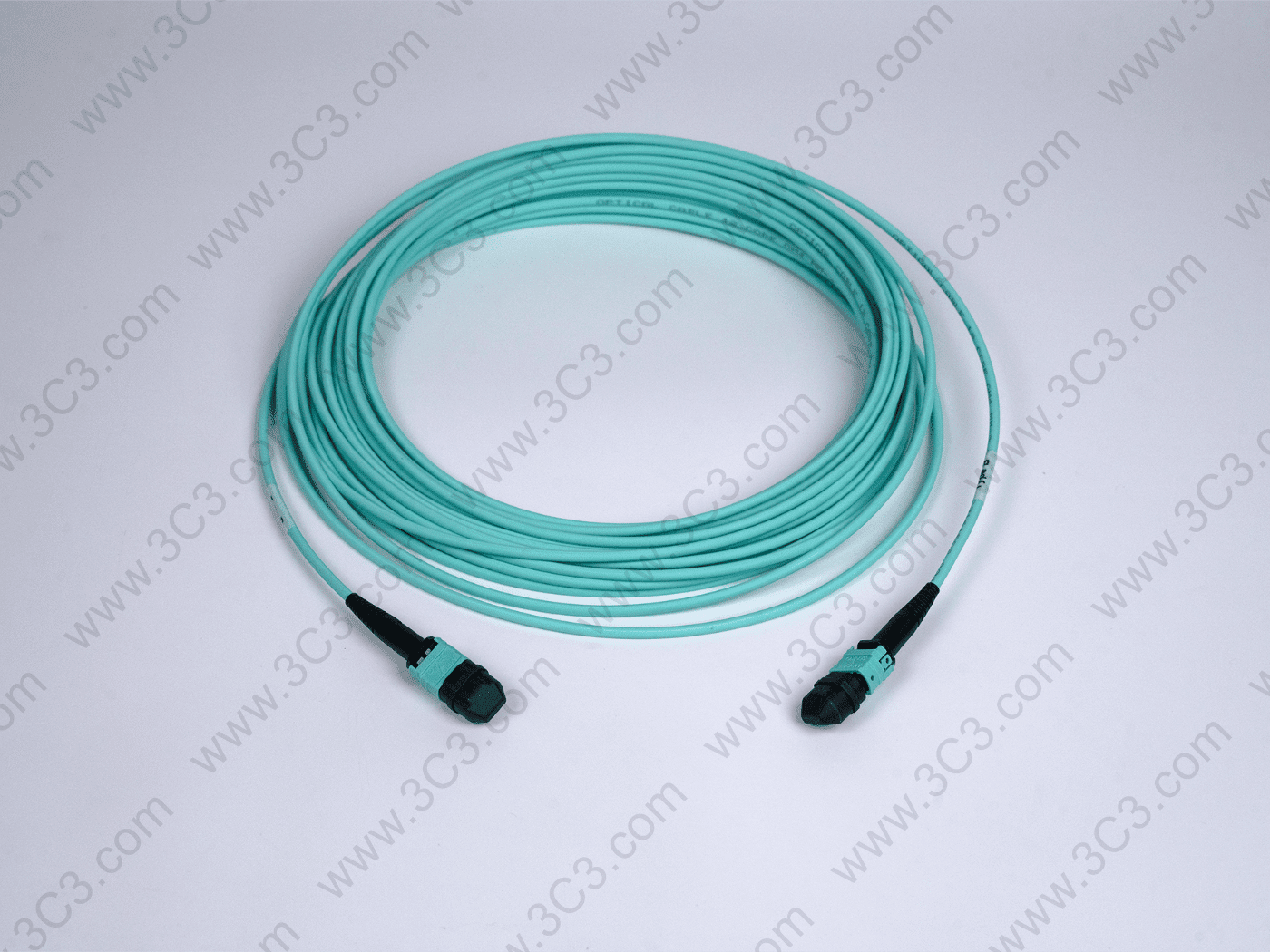

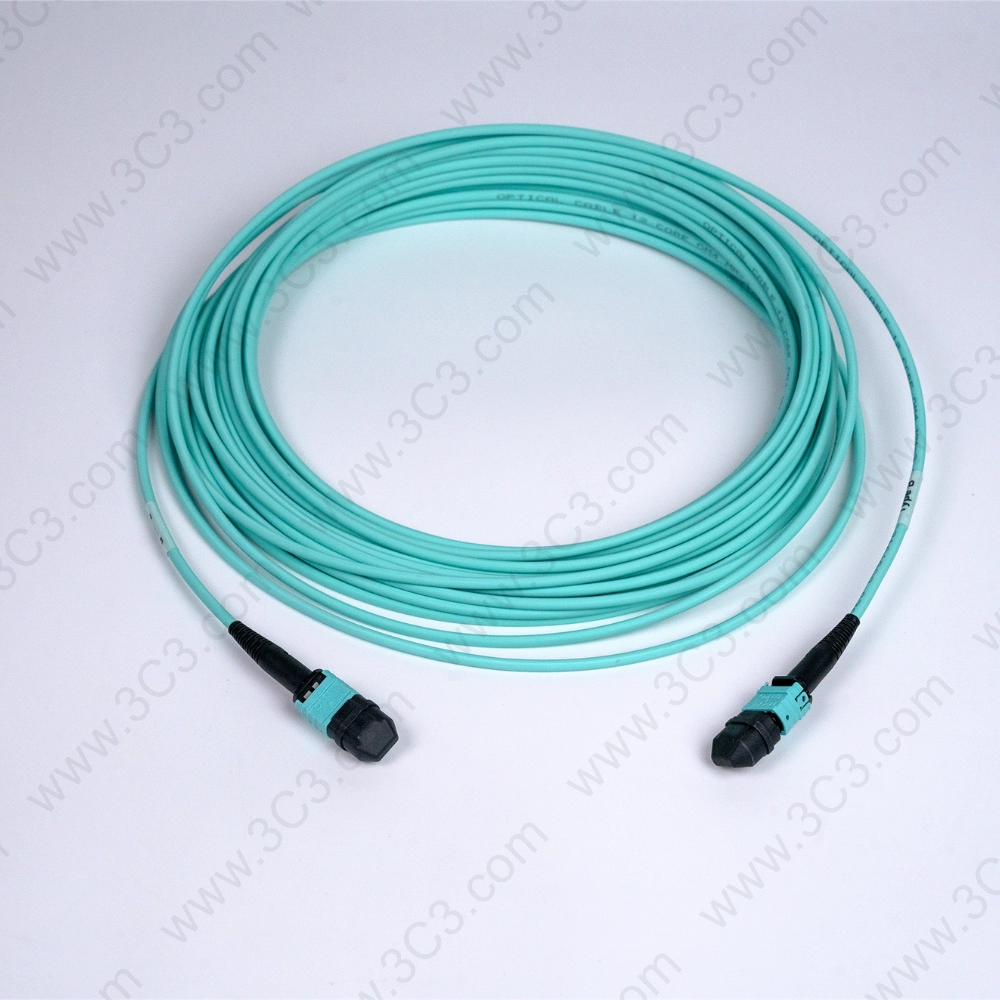

MPO to MPO Patch Cord

Partcode: 67C12-XXXX

Description: MPOF to MPOF Patch Cord, XF, Type B,MM

MPO Fiber Cabling System is ideally suited for a high-density environment that demands spacesaving and innovative cable management solutions. The MPO connector offers upto 12 times the density of standard connectors providing significant space and cost savings. MPO Patch Cord utilize precision molded MT ferrule, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating.

Download Data Sheet

Features

  • Conformance to Telcordia GR-1435 Core, ANSI/TIA-568.3-D, IEC 61754-7
  • High precision guide pins for exact alignment
  • Plug and Play
  • High Density interconnect
  • Precision moulded MT ferrule
  • Removable housing for quick change of pin clamps and easy ferrule cleaning/re-polishing
  • Single-Mode and Multi-Mode color coded housings
  • Alignment achieved with high precision guide pins
  • Push/Pull mating for quick assembly
  • Covered under 3C3® Performance Warranty

Specifications

Type                             Wavelength                I.L Max            R.L Min

MPO /PC (MM)            850n/1300nm          0.60dB              25dB

MPO/APC (SM)           1310/1550nm          0.70dB              50dB
