| Housing Material | Die-Cast Zinc Alloy |
| Contact Housing & IDC Holder | Polycarbonate (PC), UL 94V-0 |
| Plug Contact | T = 0.35 mm Phosphor Bronze |
| Compatibility | 22–26 AWG Solid & Stranded Wire |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |

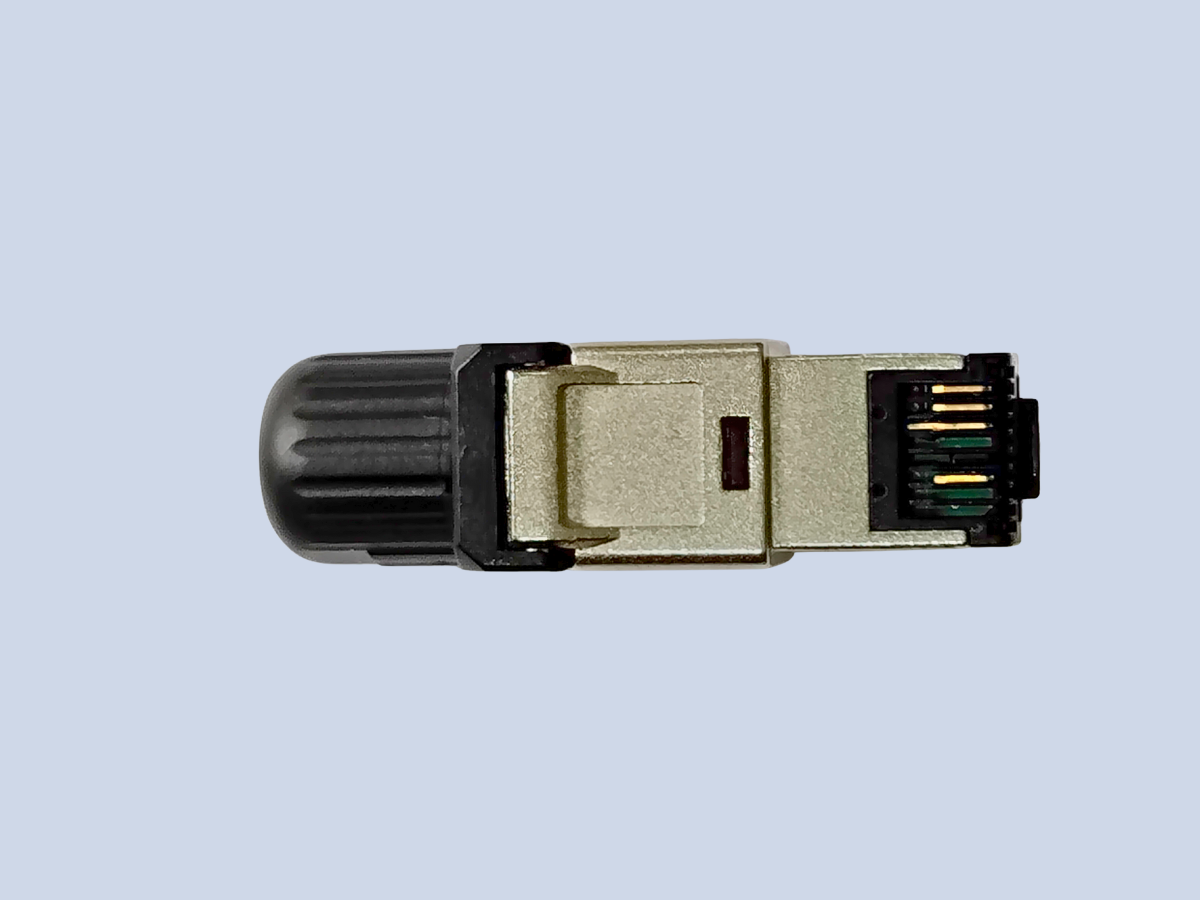

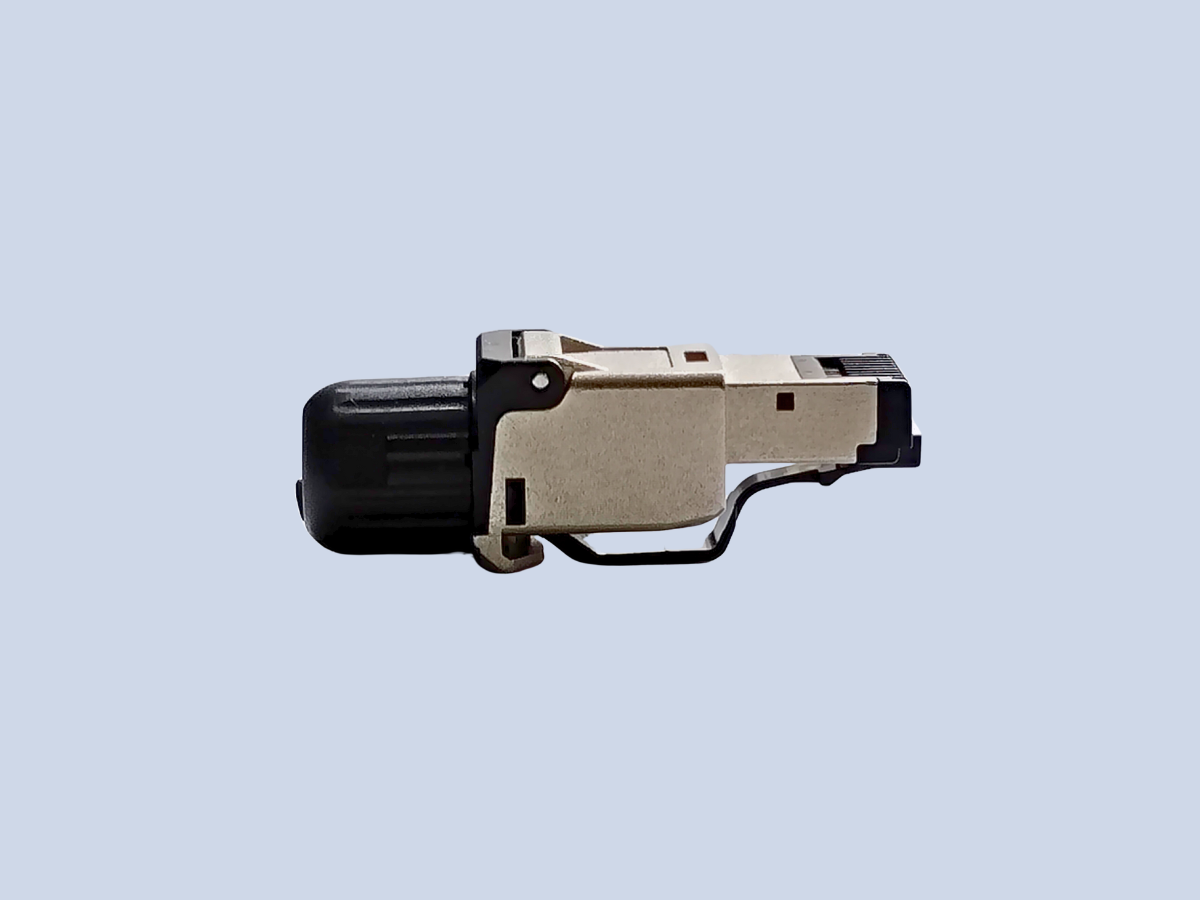

Profinet Field Terminate Plug are designed to terminate Solid or Stranded conductor cable of wire ranging from 22~26AWG. This type of plug design accommodates large diameter cabling in the form factor of a standard RJ45 plug. It features tool-free installation using IDC technology, making it quick and easy to connect or disconnect devices in the field. Profinet FTP exceeds all Category 5e performance requirements to easily support Industrial applications.Â
| Housing Material | Die-Cast Zinc Alloy |
| Contact Housing & IDC Holder | Polycarbonate (PC), UL 94V-0 |
| Plug Contact | T = 0.35 mm Phosphor Bronze |
| Compatibility | 22–26 AWG Solid & Stranded Wire |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
