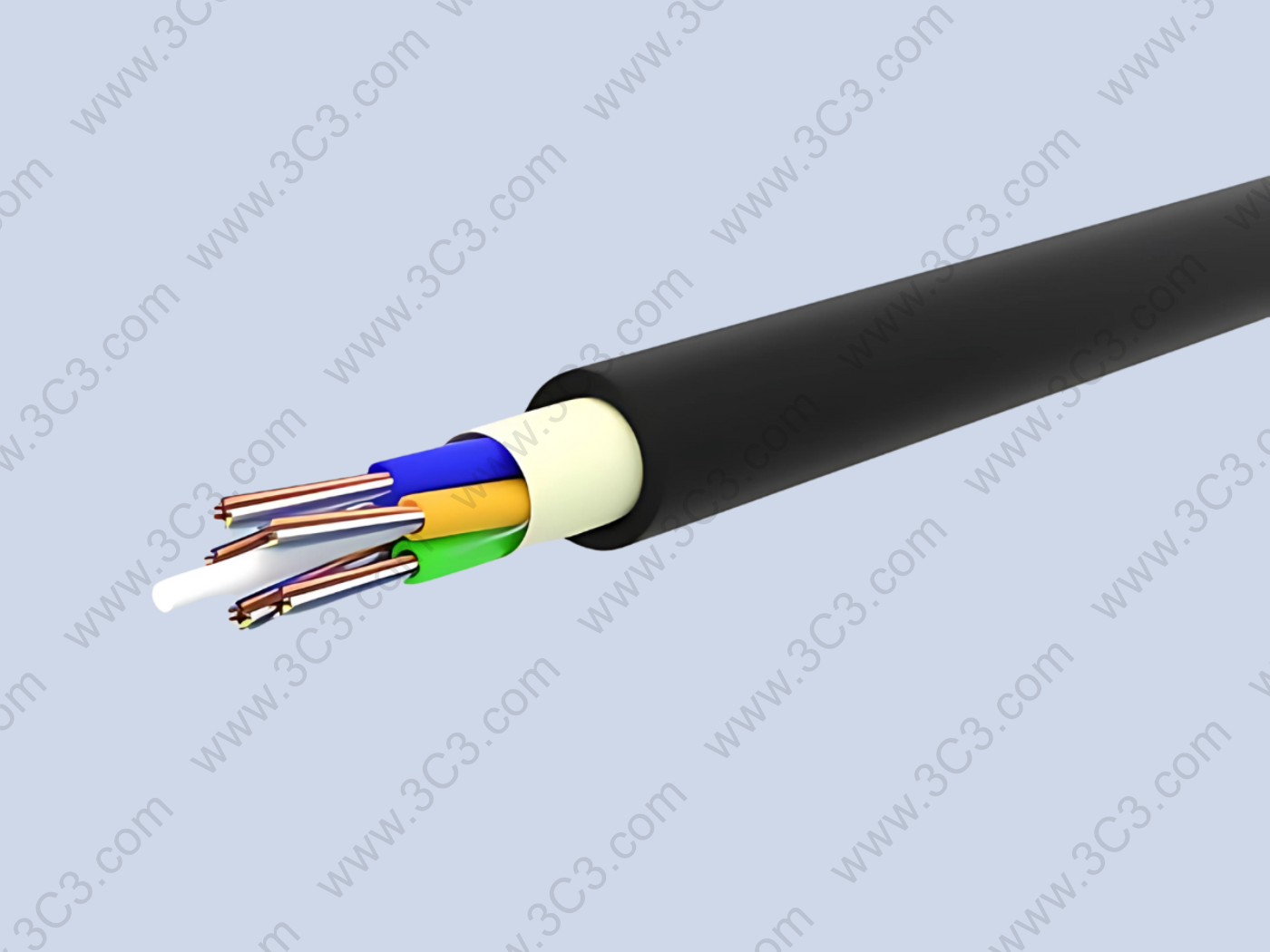

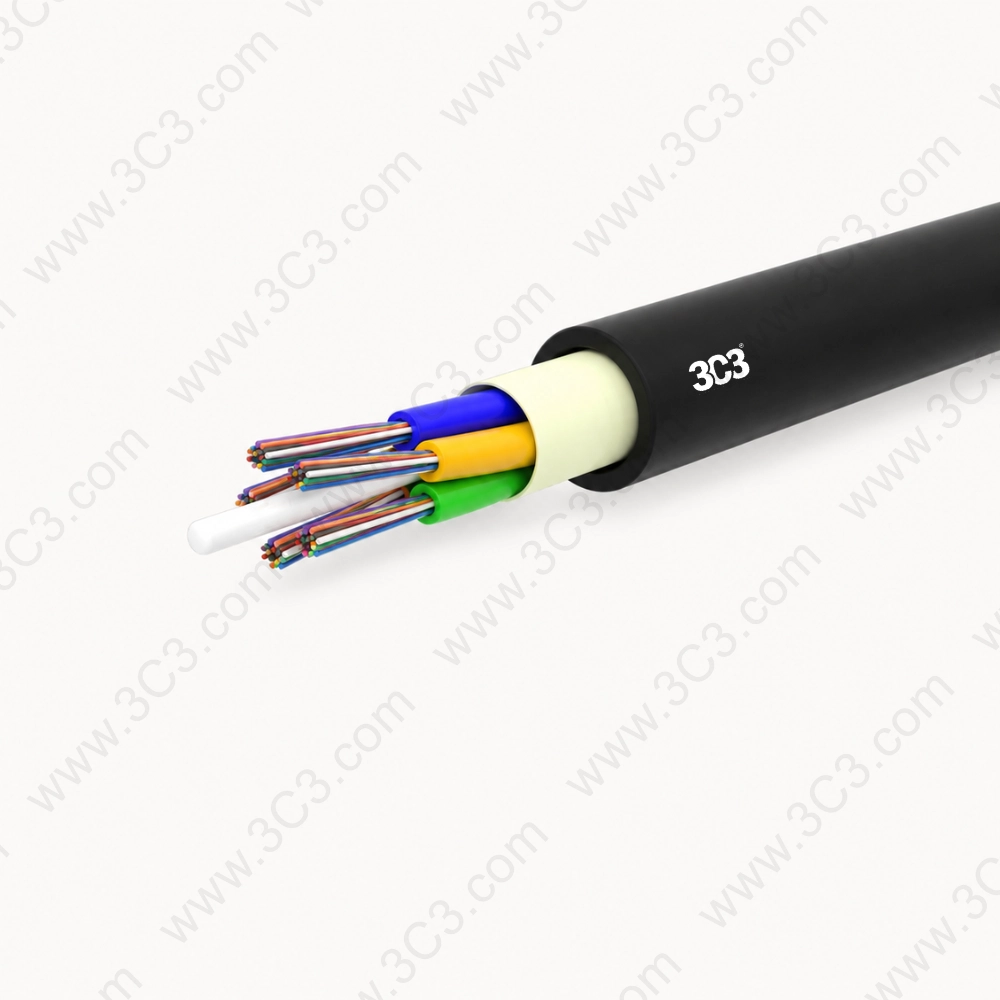

Single Mode Indoor/ Outdoor Fiber Optic Cable (6F~24F)
Partcode: 52022-0XXX
Description: High Link Fiber Optic, Multi loose Tube Indoor/Outdoor Cable, Gel free, 6F/T, CSM FRP, Single Sheath Black LSZH, OS2, Xcores
The Indoor/outdoor fiber optic cables are PBT Multi loose tube with colored fiber cores. The constructions are of dry water-blocking material with Non-Metallic Central Strength member. This cable has LSZH outer jacket makes it perfect for indoor/outdoor applications.
Conformance to ANSI/TIA-568.3-D, ITU-T G652.D, Telcordia GR-20, IEC 60794-2/ 60794-3-10
LSZH jacket
Water proof layer & excellent moisture resistance provided
Excellent consistence performance
Covered under 3C3® Performance Warranty
Specifications
Fiber Count: 6/12/24
Fibers per loose Tube: 6
Outer sheath: LSZH
Nominal Cable diameter: 9.5±0.5mm
Drum length: 2km ± 5%
Operating Temperature: -40ºC~+70ºC
Storage Temperature: -45ºC~+70ºC
Enquiring For Product
Single Mode Indoor/ Outdoor Fiber Optic Cable (6F~24F)
The Indoor/outdoor fiber optic cables are PBT Multi loose tube with colored fiber cores. The constructions are of dry water-blocking material with Non-Metallic Central Strength member. This cable has LSZH outer jacket makes it perfect for indoor/outdoor applications.
