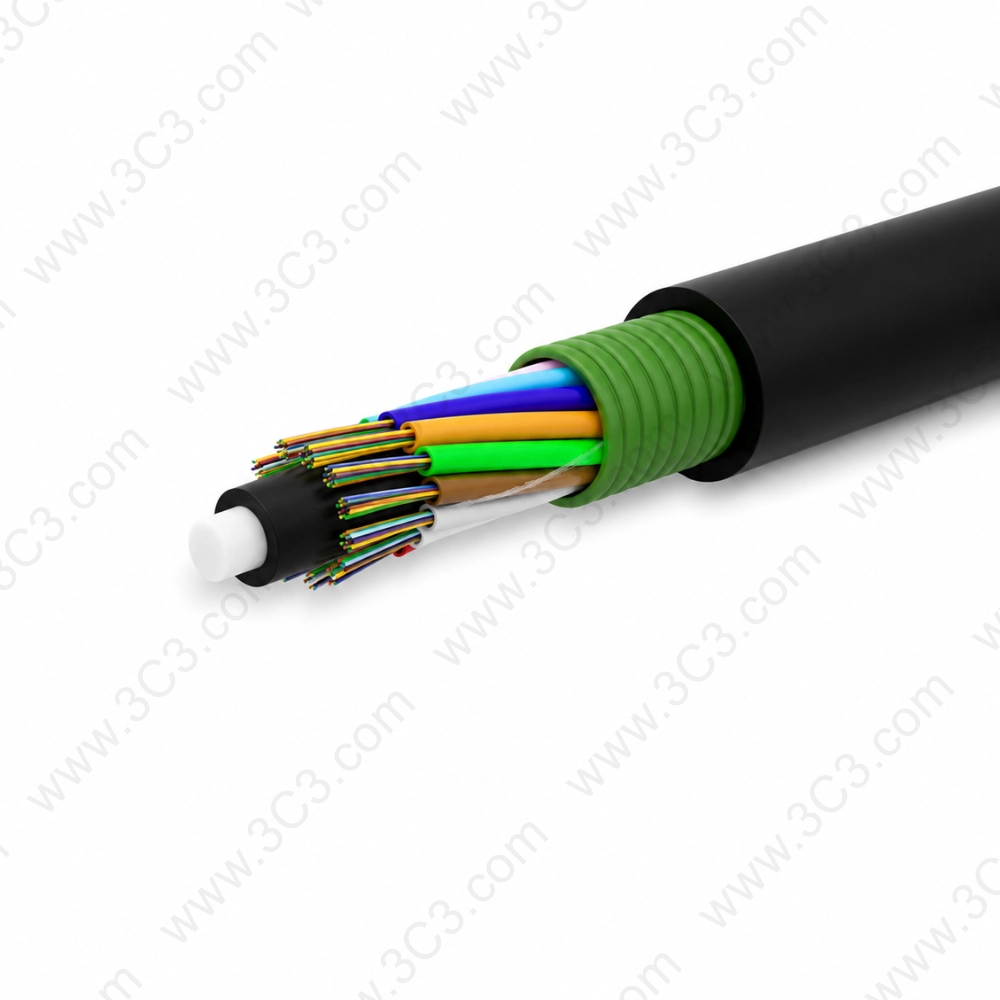

Single Mode Outdoor Armoured Fiber Optic Cable (144F)
Partcode: 53031-0144
Description: High Link Fiber Optic, Armoured, Multi loose Tube Outdoor Cable, Gel filled, 12F/T, CSM FRP, Single Sheath Black HDPE, OS2, 144cores
The Outdoor fiber optic cables are PBT Multi loose tube with colored fiber cores are suitable for direct burial as well as for duct applications. The constructions are of water-blocking tape with Non-Metallic Central Strength member & armoring. This cable has HDPE outer jacket makes it perfect for outdoor applications.
Complies to ANSI/TIA-568.3-D, ITU-T G652.D, Telcordia GR-20, IEC 60794-2/ 60794-3-10
HDPE jacket
Steel Strip Armoring
Water proof layer & excellent moisture resistance provided
Excellent consistence performance
Specifications
Fiber Count: 144
Fibers per loose Tube: 12
Outer sheath: HDPE
Nominal Cable diameter: 16.0±0.2mm
Drum length: 2km ± 5%
Operating Temperature: -40ºC~+70ºC
Storage Temperature: -40ºC~+70ºC
