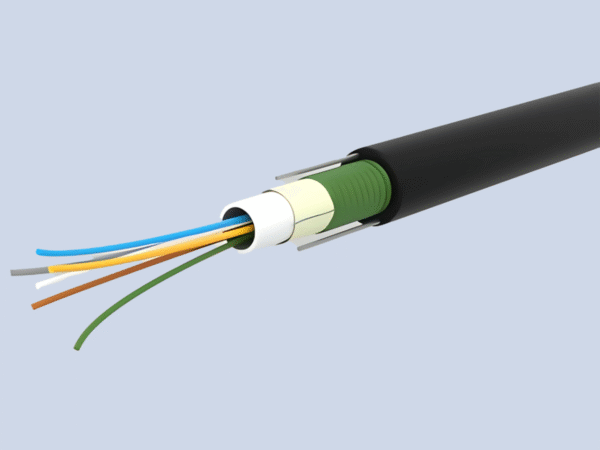

Single Mode Uniloose Tube Outdoor Armoured Fiber Optic Cable (6F~12F)

Part Code:

53011-0XXX

High Link Fiber Optic, Armoured, Uni loose Tube Outdoor Cable, Gel filled, Peripheral Steel rod Strength Member, Single Sheath Black HDPE, OS2, 6 Cores.

Fiber Count	6F / 12F
No. of Tube	1
Outer Sheath	HDPE UV Resistance
Nominal Cable Diameter	9 ± 0.5 mm
Drum Length	2 km ± 5%
Operating Temperature	-40°C to +75°C
Storage Temperature	-40°C to +75°C

Single Mode Uniloose tube, single sheath ECCS tape armored optical fiber cable is suitable for duct and aerial applications. Fiber cable is perfectly suited for both gigabit Ethernet and 10 gigabit Ethernet campus and backbone applications.

Complies to ANSI/TIA-568.3-D, ITU-T G652.D, Telcordia GR-20, IEC 60794-2/ 60794-3-10.
HDPE UV Resistance jacket.
ECCS tape Armoring.
Water proof layer & excellent moisture resistance provided.
Excellent consistence performance.
Covered under 3C3® Performance Warranty.

Fiber Count	6F / 12F
No. of Tube	1
Outer Sheath	HDPE UV Resistance
Nominal Cable Diameter	9 ± 0.5 mm
Drum Length	2 km ± 5%
Operating Temperature	-40°C to +75°C
Storage Temperature	-40°C to +75°C

Product Specification
