| Fiber Count | 6~24F |
| No. of Tube | 1 |
| Tube Diameter | 2.5±0.1 mm |
| Tube Colors | 6F: Blue, Orange, Green, Brown, Grey, White 12F: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua 24F: Blue, Orange, Green, Brown, Grey, White |
| Fiber Colors | Red, Black, Yellow, Violet, Pink, Aqua, Ring Mark – Blue, Orange, Green, Brown, Grey, White, Red, Natural, Yellow, Violet, Pink & Aqua |
| Embedded Strength Member | 2 × 0.55 mm Steel Wire Embedded in Sheath |
| Water Blocking Material | Glass Yarn |
| Outer Sheath | HDPE UV Resistance |
| Sheath Color | Orange |
| Rip Cord | Yes, Polyester Based Yarns Below Armoring |
| Nominal Cable Diameter | 8±0.5 mm |
| Nominal Cable Weight | 60 kg/km ±10% |
| Drum Length | 2 km ±5% |

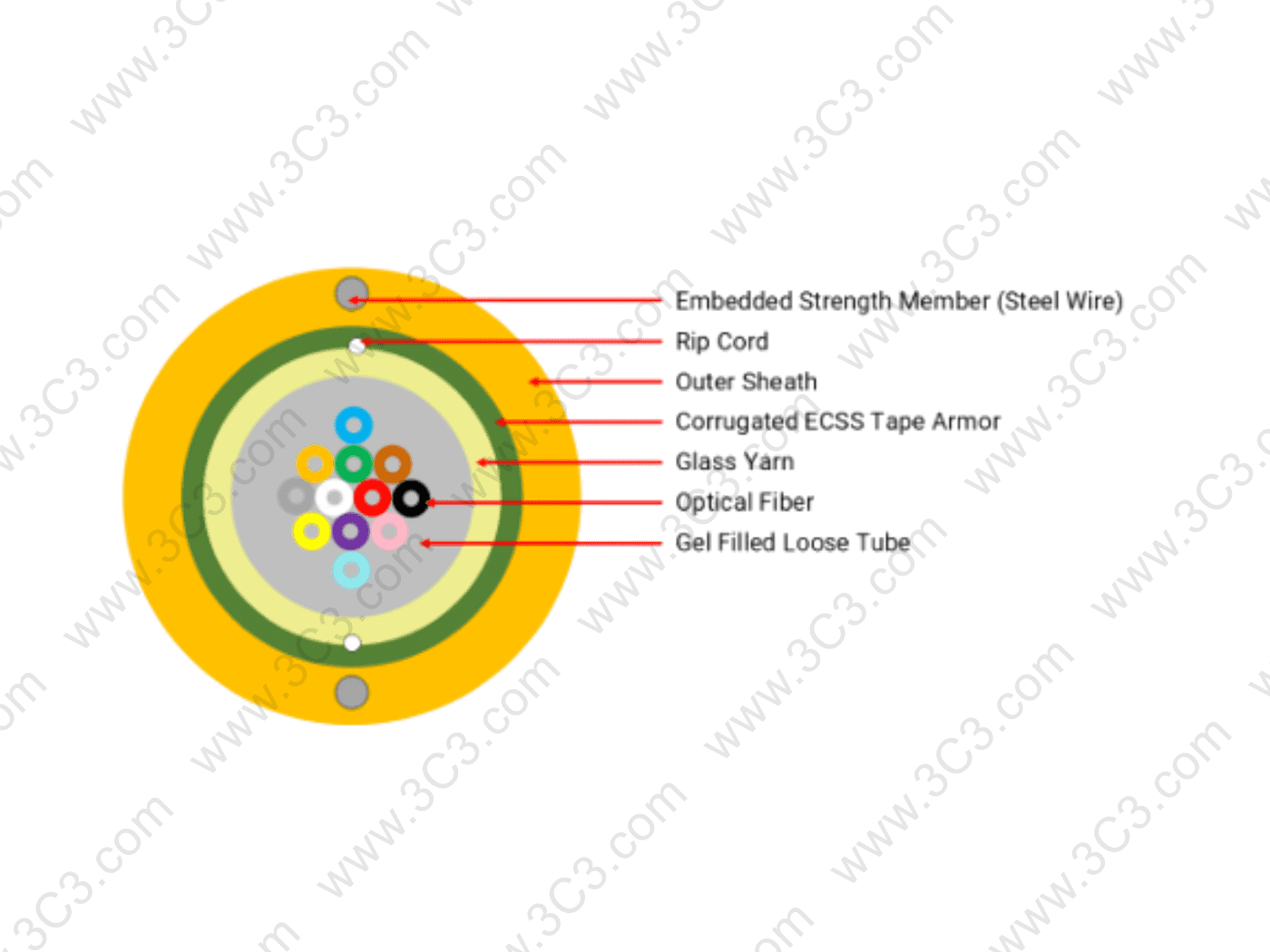

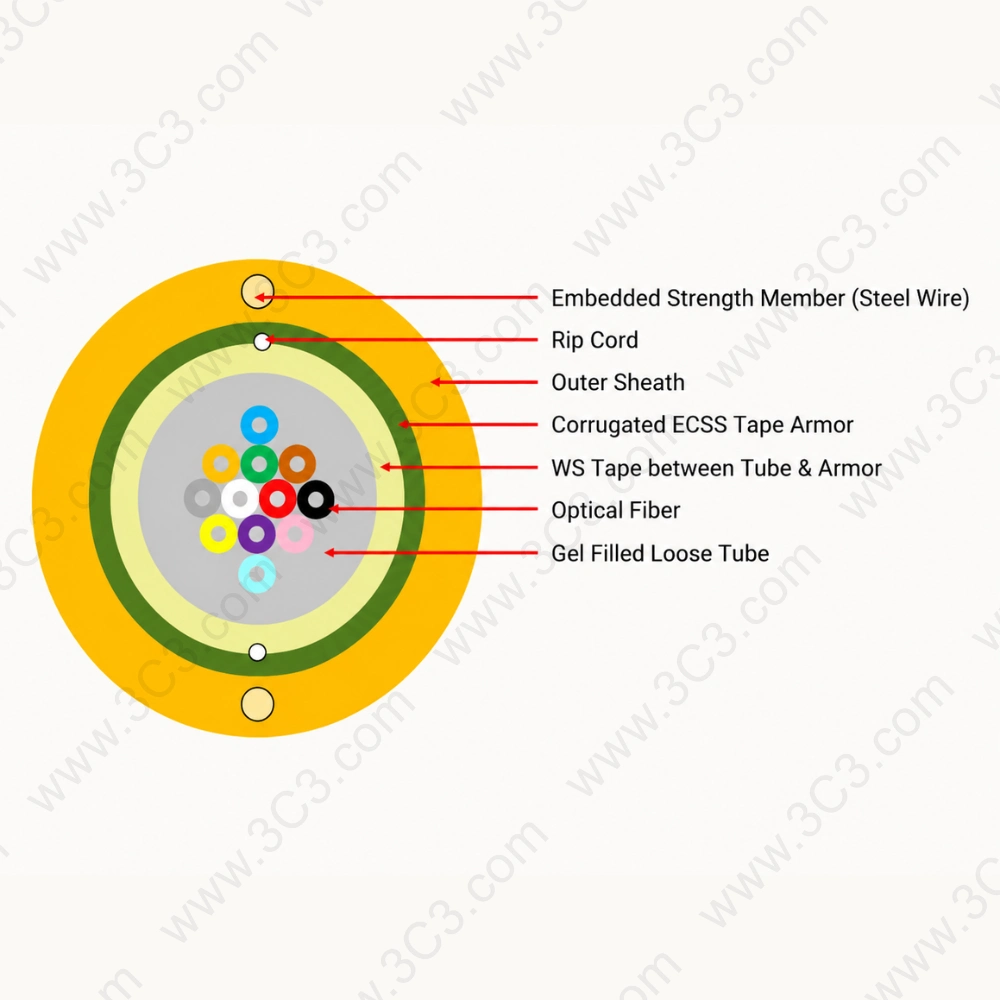

Single Mode Uniloose tube, single sheath ECCS tape armored optical fiber cable is suitable for duct and aerial applications. Fiber cable is perfectly suited for both gigabit Ethernet and 10 gigabit Ethernet campus and backbone applications.
| Fiber Count | 6~24F |
| No. of Tube | 1 |
| Tube Diameter | 2.5±0.1 mm |
| Tube Colors | 6F: Blue, Orange, Green, Brown, Grey, White 12F: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua 24F: Blue, Orange, Green, Brown, Grey, White |
| Fiber Colors | Red, Black, Yellow, Violet, Pink, Aqua, Ring Mark – Blue, Orange, Green, Brown, Grey, White, Red, Natural, Yellow, Violet, Pink & Aqua |
| Embedded Strength Member | 2 × 0.55 mm Steel Wire Embedded in Sheath |
| Water Blocking Material | Glass Yarn |
| Outer Sheath | HDPE UV Resistance |
| Sheath Color | Orange |
| Rip Cord | Yes, Polyester Based Yarns Below Armoring |
| Nominal Cable Diameter | 8±0.5 mm |
| Nominal Cable Weight | 60 kg/km ±10% |
| Drum Length | 2 km ±5% |
