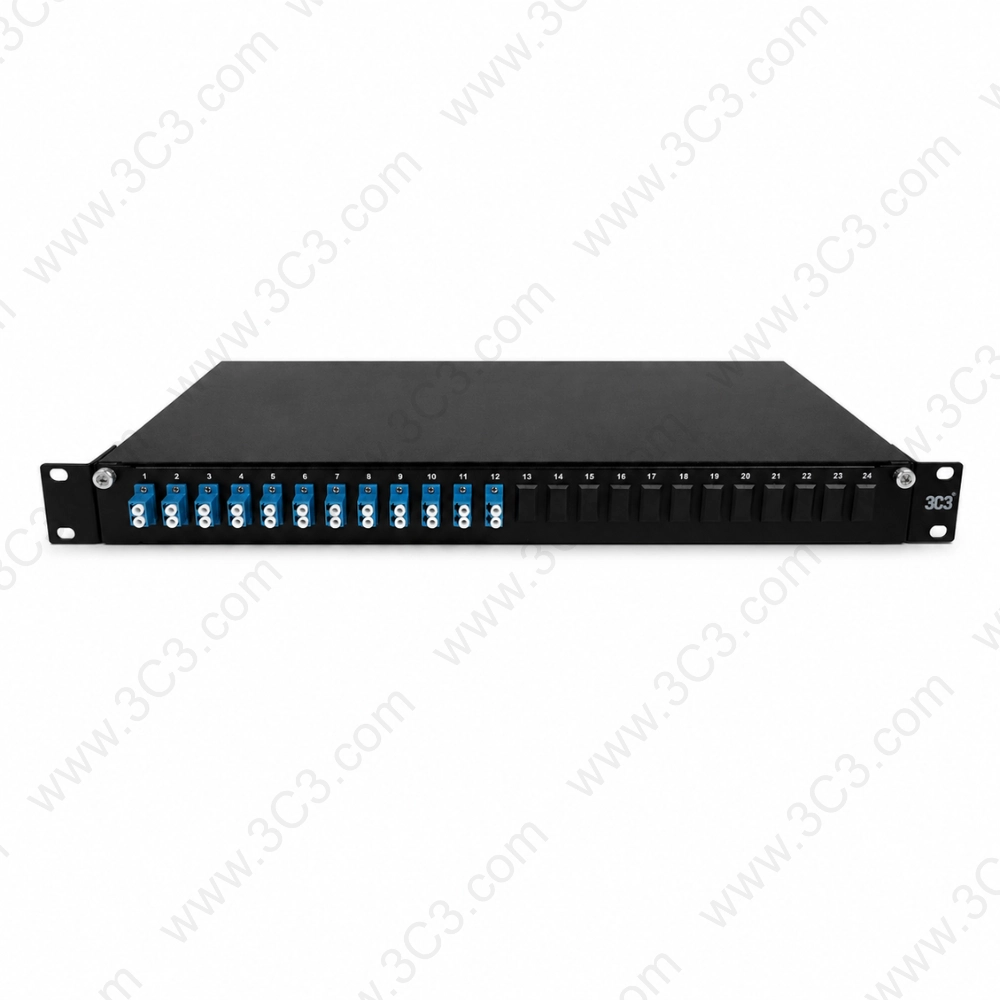

Fiber Patch Panel

Partcode: 831DE-1100

Description: Fiber Panel Fixed, Loaded with SC Simplex Adapters, SCU Pigtails, Splice Tray, SM, 1U

The Fiber Optic Patch Panels are designed with single fixed adapter plate which can take an array of adapters, this panel offers a flexible solution to the end user, enabling them to incorporate a multi-functional chassis that allows easy access during installation or rework with no disturbance of the existing cable or fibers. In addition, the panel offers multiple cable entry solutions.

Download Data Sheet

Features

  • Conformance to ANSI/TIA-568.3-D, Telcordia GR-326-CORE, Telcordia GR-1221-CORE, ISO/IEC 11801, IEC 61754 & IEC 61300 series
  • Pigtails conformance to ITU-T G.657.A1 (Compatible with G.652.D) Single Mode
  • Standard 19 Inches Installation
  • 4 ø 20mm Cable access holes for easy installation and maintenance

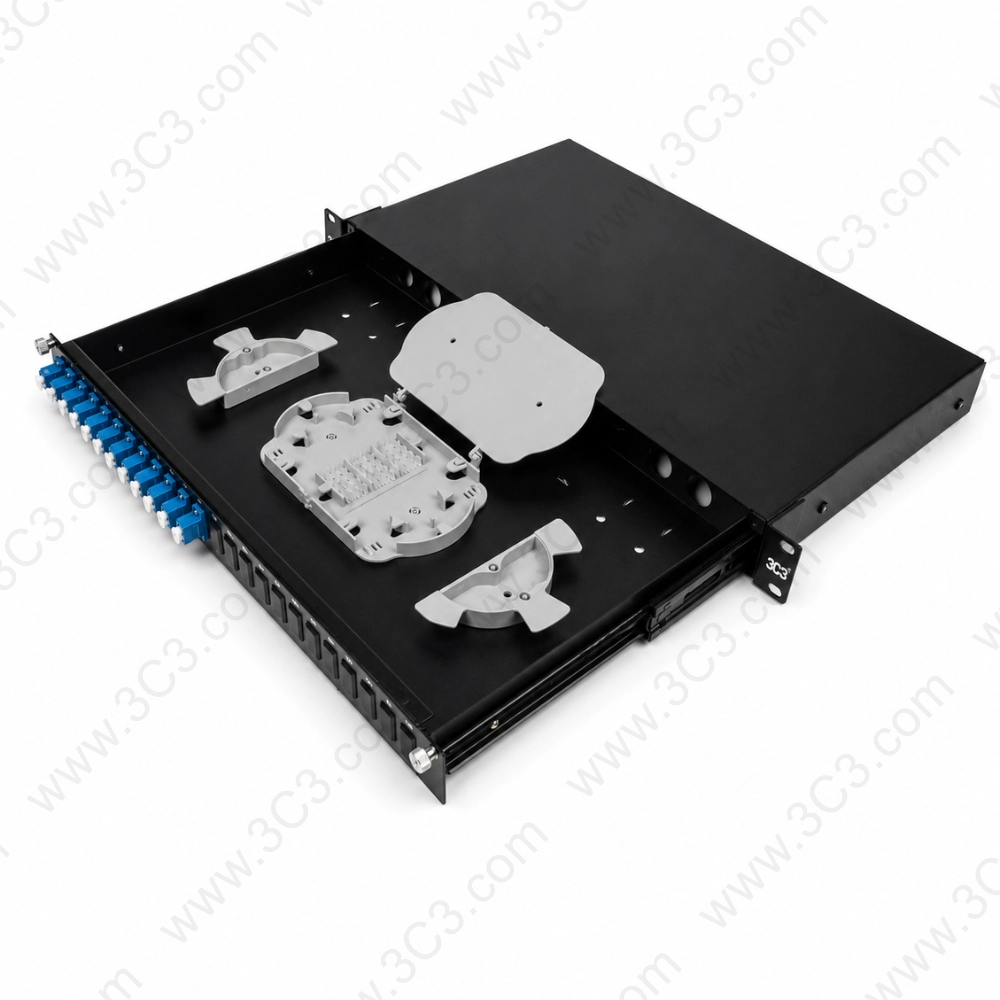

  • Splice tray capacity 24 fibers (Maximum 2Nos)
  • Pigtails Available in PC, UPC, APC
  • Covered under 3C3® Performance Warranty

Specifications

Material: SPCC (cold rolled steel sheet)

Fiber Capacity maximum: 48F, 1U

Adapter Types: LC (48F), SC(24F)

Operating Temperature : -25ºC ~ +70ºC
