Fiber Patch Panel 19” 4 – Cutout 1U Loaded

Part Code: 61072-1096

Description: Fiber Panel Sliding 4 cutout, 4Nos Adapter Plate Loaded with 6LC Quad, 96 LCU Pigtails, Splice Tray, SM, 1U

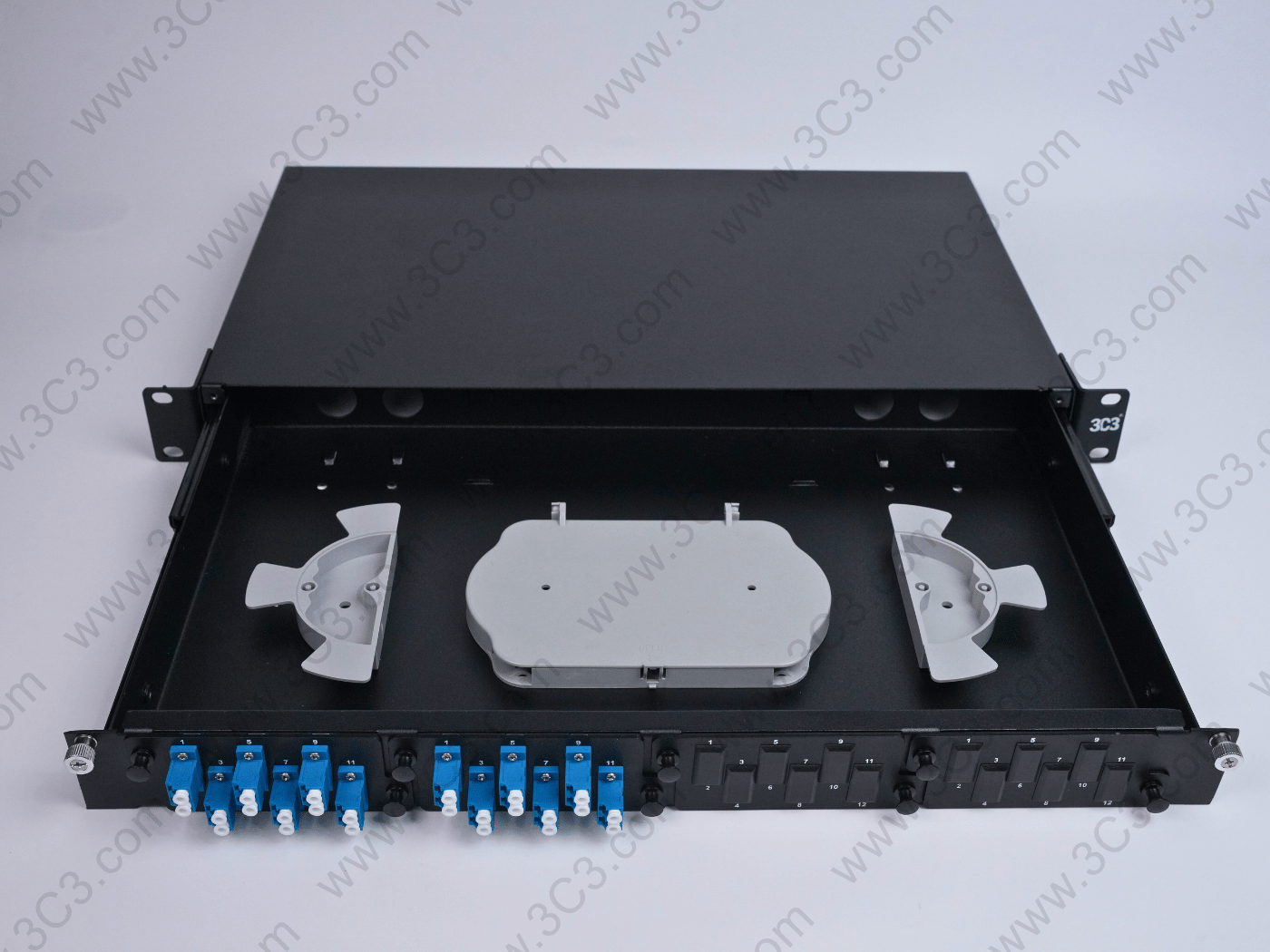

The Fiber Panels are designed with 4 cutouts to mount adapter plate assemblies. With the special sliding design, this panel allows easy access during installation or rework without
disturbing the previously terminated fiber cable. This also offers multiple cable entries to provide various customized solutions as per the customers’ requirements. This panel comes with
adaptor plates which are preloaded with couplers and can snap in for installation and can be removed easily for future changes. This panel is preloaded with Splice tray & necessary fiber
management accessories.

Features

Standard 19-inch Rack Mountable
Innovative and robust design
Unique slide design, structural stability, easy to use and operate, slides smoothly without interference.
Accepts Four adapter plates or 4 MPO/MTP Cassettes
4 Nos of 20mm diameter at the rear for Cable entries
Based on Adapter plates installed, maximum 96 cores can be accommodated
Accepts loose tube, distribution cable, and MPO/MTP trunk cable
Channel performance verified by ETL (Applicable for OM4)
Covered under 3C3® Performance Warranty

Specifications

Panel Material : SPCC (Cold rolled steel sheet)
Form Factor : 19” 1U Rack Mount
Dimension : 482 x 250 x 44 mm
Panel Finish : Powder Coated, Black
Pigtail Types : Single Mode
