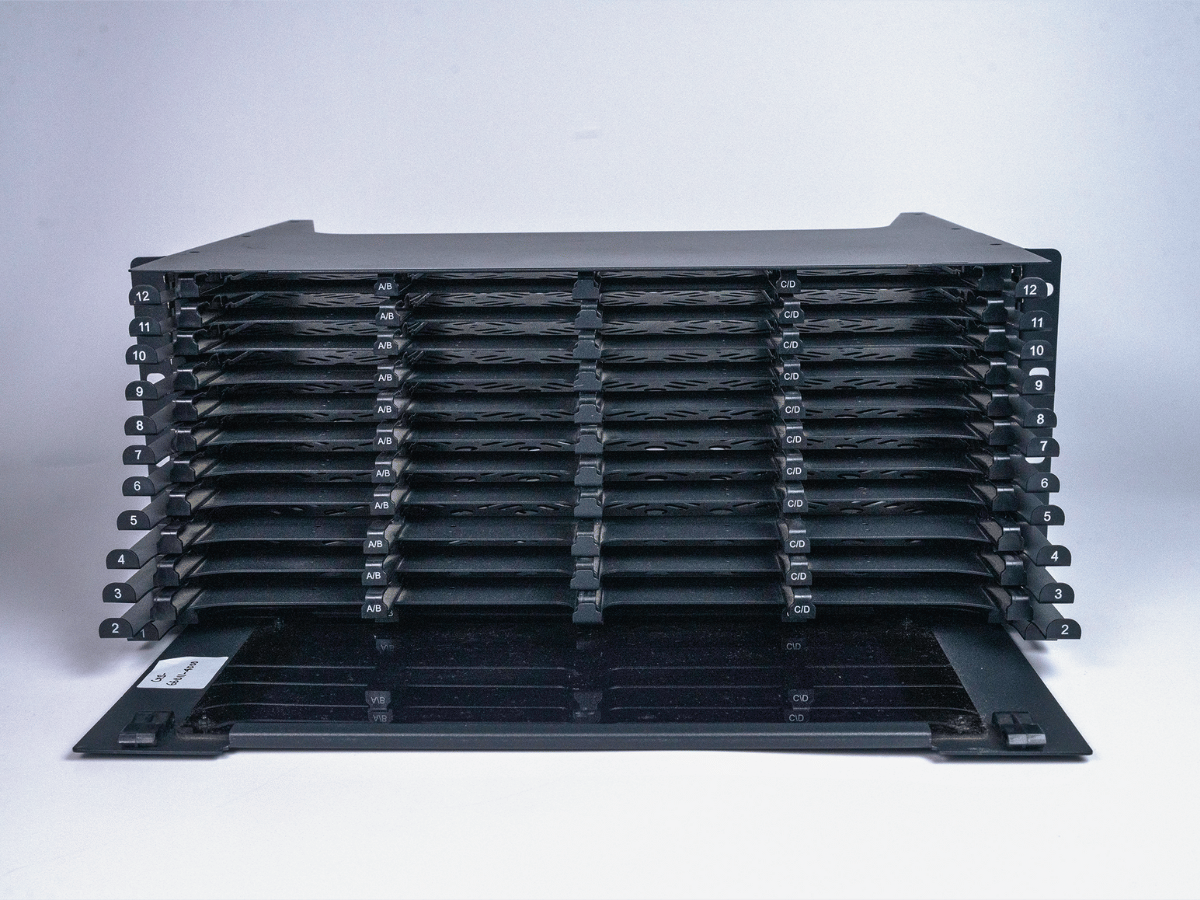

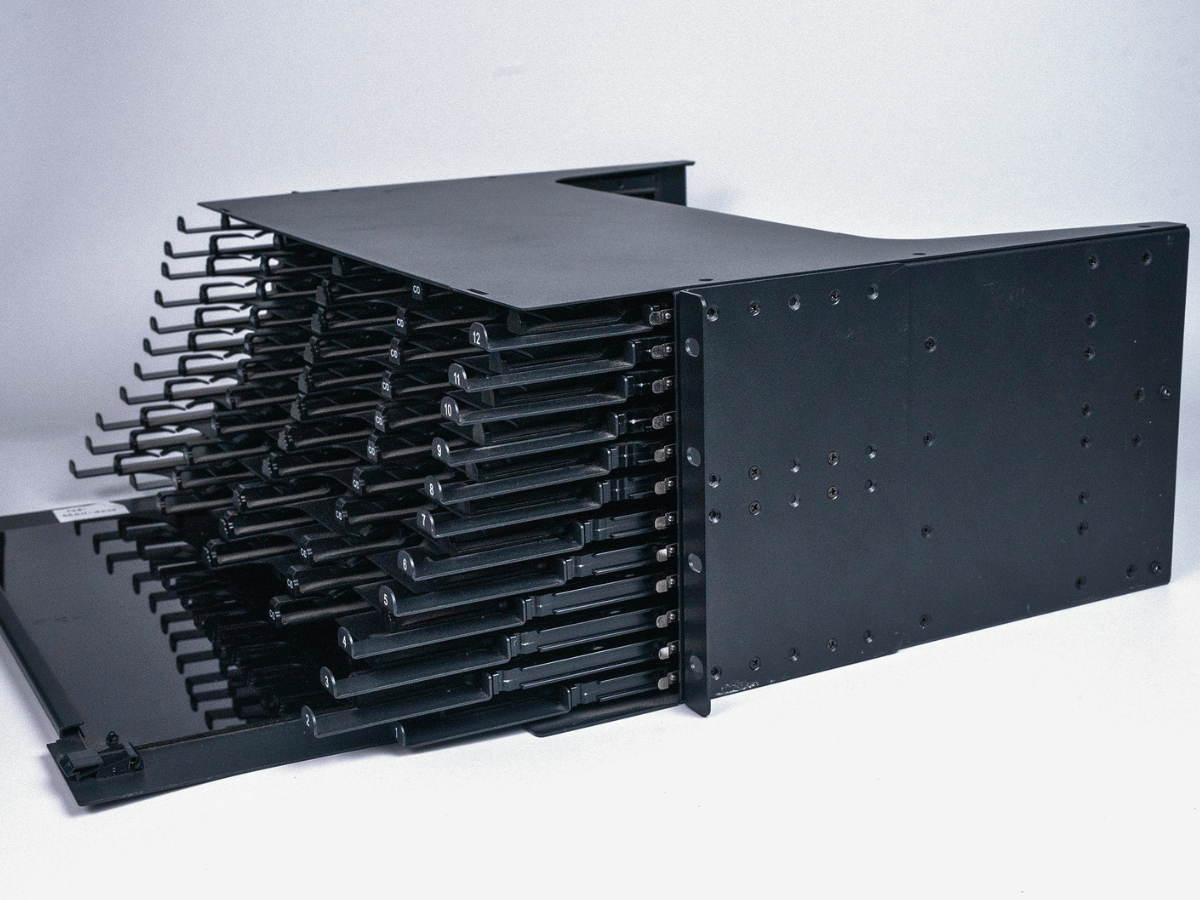

3C3® Zeta Core™ Panel is specially designed to accommodate Zeta Core™ cabling in high end Data Center and Telecommunication central office environment. The shallow depth of Zeta Core™Panel makes it suitable for low depth copper racking systems or Telecommunication ODFs. The 4U 19” 576fiber MPO Panel contains factory controlled and tested Modules can be installed in it. Different types of cassettes are available to deliver optimum Performance and reliability. Integrated fiber management features are provided to secure trunk cables, separate patch cords and maintain safe bend radius during fiber routing.
Complies to IEC61754-7, ANSI/TIA–604-5 FOCIS 5, ANSI/TIA 472.AAAD and ISO/IEC 11801
Patch Panel design rail and easy pullout.
Easy installation: Cassettes can be installed
4U patch panel capacity comes up to 576F fully loaded with 48 modules
Factory pre-terminated and tested modules are available
19″ rack mount, the panel is made of cold rolled steel sheet and module is made of plastic
Specifications
Body Materials: SPCC (Cold rolled steel sheet)
Painting Finish: Black (fine sand grain spray)
Panel Color: RAL black
Fiber Mode: OS2, OM3, OM4
Panel Height: 4U
Capacity: 576LC, 576 Splicing, 288 MPO/MTP
Dimension (WxDxH): 483 mm x 350 mm x 4U
Operation Temperature: -40ºC~+75ºC
Storage Temperature : -40ºC~+75ºC
Relative Humidity: ≤85%(+30ºC)
Air Pressure: 70kPa~106kPa
